AccessCore One. Four doors, one board, no server.

A networked door controller that makes access decisions at the door, connects straight to the cloud over Ethernet and is documented down to the terminal.

Become a dealer Wiring documentation

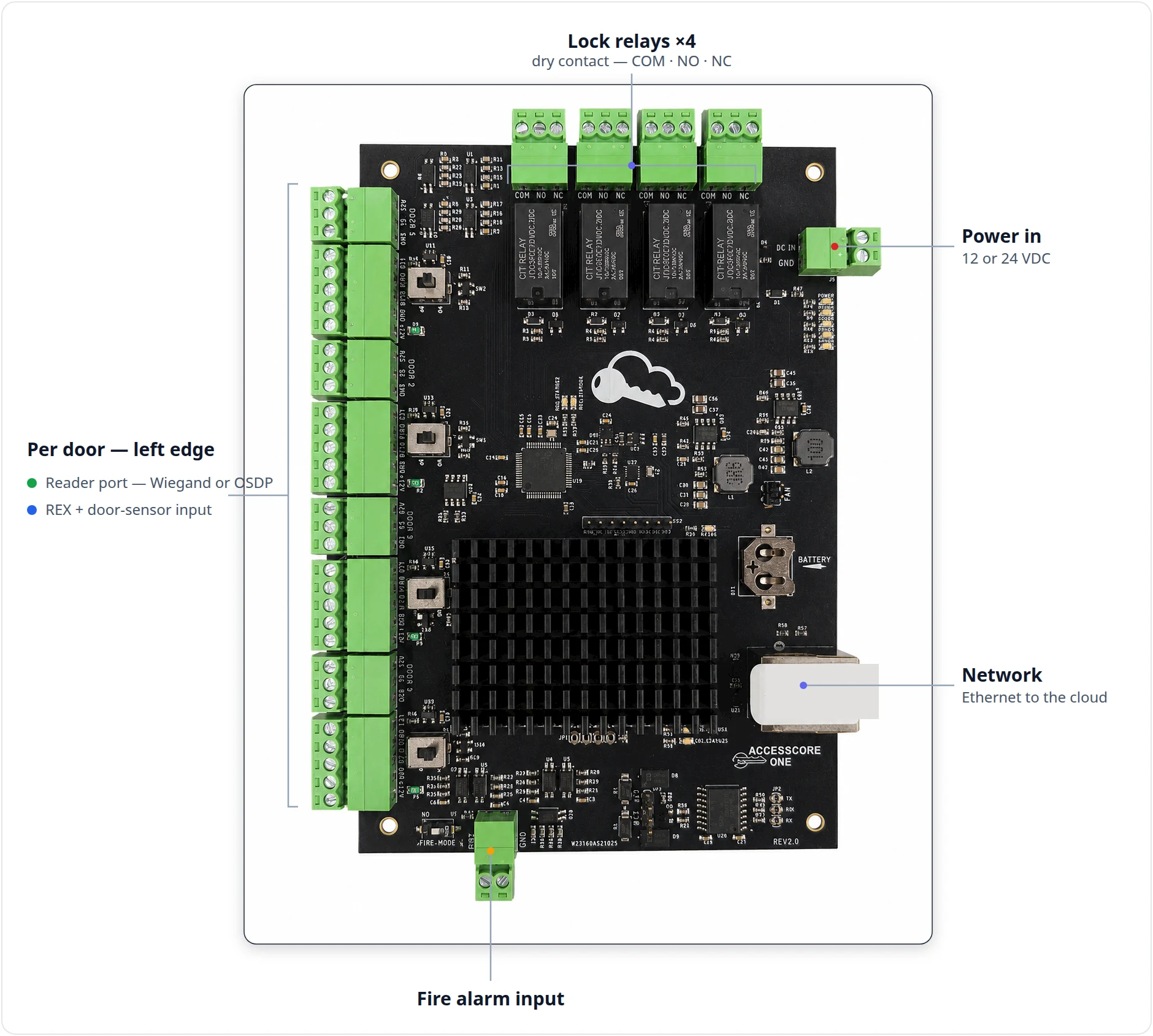

AccessCore One controller board, annotated: four lock relays along the top edge (dry contact COM, NO, NC); power input at the top right (12 or 24 VDC); per-door reader ports (Wiegand or OSDP) and REX and door-sensor inputs down the left edge; Ethernet network port at the lower right; fire alarm input at the bottom edge.
AccessCore One · connector map · click to enlarge

Specifications

Doors per controller
4
Reader interface
Wiegand or OSDP, selectable per port
Lock outputs
4 × Form C dry-contact relays (COM / NO / NC)
Door inputs
REX and door-position contact per door
Fire alarm
Dedicated input with selectable fire mode
Power input
12 or 24 VDC
Network
10/100 Ethernet to the cloud
Timekeeping
Battery-backed real-time clock
Architecture
Edge node + dedicated door-control MCU
Compliance
UL 294 compliant

Full connector and pin map in the terminal reference.

Architecture

Decisions at the door, not in the cloud.

  • Internet outage: doors keep granting and denying access locally. Connectivity is only needed to make configuration changes.
  • Updates and reboots: door I/O runs on a dedicated control processor, so doors stay in service while the node restarts.
  • Node offline: the control MCU keeps the door working from a master card list until the node returns.

System architecture

  1. 01

    Cloud platform

    Web dashboard, mobile app, dealer portal

  2. 02

    Controller node

    Edge application with offline access database

  3. 03

    Control MCU

    Relays, reader data lines and door inputs

  4. 04

    Doors 1–4

    Readers, locks, REX and door contacts

Compliance

UL 294 compliant, with the installation conditions spelled out.

UL 294 is the safety standard for access control system units. A compliant install follows four conditions, and our documentation covers each one.

  1. Condition 1

    Locked enclosure

    The controller is mounted in a locked enclosure inside the protected premises.

  2. Condition 2

    Listed backup power

    Powered from a UL 294-listed access control supply with battery backup.

  3. Condition 3

    Fused lock outputs

    Locks are driven through a UL-listed fused relay/output board.

  4. Condition 4

    Independent egress

    Push-to-exit and fire-alarm release cut lock power in hardware, independent of the controller.

Read the full listing & compliance guide, including the compliant-installation checklist.

For installers

Documented down to the terminal.

Every connector group has its own wiring guide, with diagrams. Readers on the qualified list onboard end-to-end with the setup wizard.
